Longwave 50 Basic Kit
2200M and 630M 50W Amplifier
$45.00
This is a basic kit with PCB's and Heat sink. The buyer will source all the parts necessary to build the kit.

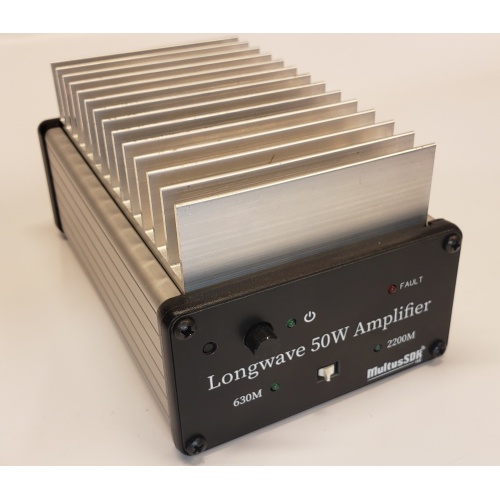

The Longwave 50 is a 50W LF/MF amplifier that runs off a 13.8VDC power supply. It uses a pair of IRFZ24N finals in a push pull configuration and draws about 10A. Covers 2200M and 630M. Requires 1W input.
You will need to order the rest of the parts. For your convenience digikey shopping cart links are provided here. https://multussdr.groups.io/g/main/files/Longwave%2050%20Amplifier/BOM
Build instructions, Bill of materials and schematics are location on forum.
https://multussdr.groups.io/g/main/files/Longwave%2050%20Amplifier/Instructions
This is a basic kit with PCB's and Heat sink:
Amplifier PCB
LPF PCB
Shield PCB
End panel PCBs
Front and back enclosure bezels
Heat sink drilled and tapped with hardware
End Panel Screw set
Kits and assembly options could take up to 5 business days to fill order
The Longwave 50 is a 50W LF/MF amplifier that runs off a 13.8VDC power supply. It uses a pair of IRFZ24N finals in a push pull configuration and draws about 10A. Covers 2200M and 630M. Requires 1W input.
You will need to order the rest of the parts. For your convenience digikey shopping cart links are provided here. https://multussdr.groups.io/g/main/files/Longwave%2050%20Amplifier/BOM
Build instructions, Bill of materials and schematics are location on forum.
https://multussdr.groups.io/g/main/files/Longwave%2050%20Amplifier/Instructions
This is a basic kit with PCB's and Heat sink:
Amplifier PCB
LPF PCB
Shield PCB
End panel PCBs
Front and back enclosure bezels
Heat sink drilled and tapped with hardware
End Panel Screw set
Kits and assembly options could take up to 5 business days to fill order
- Availability: 1 In Stock
